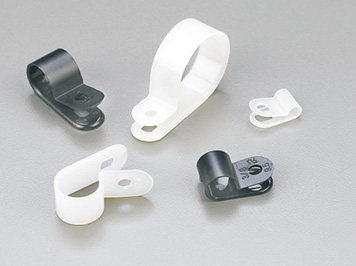

材 質：UL認可之尼龍66，防火等級94V-2。使用方法：將電纜置于固定扣內，再以螺絲固定。

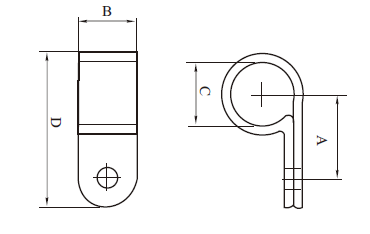

型號 | A (mm) | B (mm) | C | D (mm) | |
mm | Inch | ||||
1/8R | 9.5 | 9.6 | 3.2 | 1/8" | 19.8 |
3/16R | 9.6 | 9.6 | 4.8 | 3/16" | 19.8 |
1/4R | 12.0 | 10.0 | 6.4 | 1/4" | 22.0 |
5/16R | 12.0 | 10.0 | 7.9 | 5/16" | 22.0 |
3/8R | 12.5 | 12.0 | 9.5 | 3/8" | 24.0 |
1/2R | 15.2 | 12.0 | 12.7 | 1/2" | 31.0 |
5/8R | 18.2 | 12.0 | 15.8 | 5/8" | 34.3 |
3/4R | 18.2 | 12.0 | 19.4 | 3/4" | 35.0 |
1R | 22.0 | 12.0 | 25.4 | 1" | 43.0 |
17/16R | 24.0 | 12.0 | 27.5 | 14/16" | 50.0 |
5/4R | 26.2 | 12.0 | 31.8 | 11/4" | 46.2 |
3/2R | 30.0 | 12.0 | 36.7 | 11/2" | 50.0 |
